A high-speed centrifugal spray dryer is a kind of continuous atmospheric dryer.Use a pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplets,make these fog droplets in contact with the hot air in the drying chamber, and instantaneous drying.
Evaporation Capacity
Dried Powder Collecting

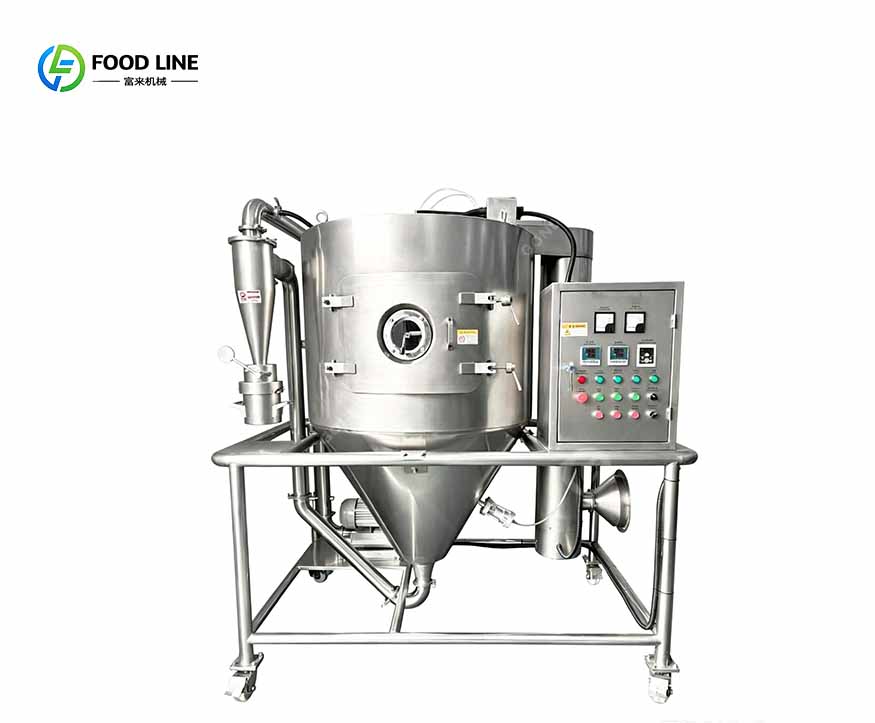

A centrifugal spray dryer is an efficient drying equipment specially designed to quickly transform liquid, emulsion, or slurry materials into powder or granular products. The equipment atomizes the feed liquid into fine droplets through a high-speed rotating centrifugal atomizer and then fully contact with high-temperature drying gas to realize instantaneous evaporation of water and complete the rapid drying process. The finished powder has good fluidity and uniform particle size, which is an ideal drying solution for food, chemical industry, medicine and other industries.it is usually been used for drying materials, such as food, yeast, hawthorn, collagen, medicine extract, egg white/yolk, plasma/blood cell protein, amino acid, flavoring, sodium fluoride, latex powder, and more.
| Model | FL-5 | FL-25 | FL-50 | FL-150 |
| Inlet temperature°C | 140-350 automatically controlled | |||
| Outlet temperature°C | ~80-90 | |||
| Max.water evaporation capacity | 5kg/h | 25kg/h | 50kg/h | 150kg/h |
| Rotation speed | 25000 | 18000 | 18000 | 15000 |
| Spraying desc diameter | 50 | 100 | 120 | 150 |
| Max electric heating power | 9 | 36 | 63 | 99 |
| Overall dimensions | 1.8x0.93x2.2m | 3x2.7x4.26m | 3.7x3.2x5.1m | 5.5x4.5x7m |
| Dried powder collecting | ≥95 | |||

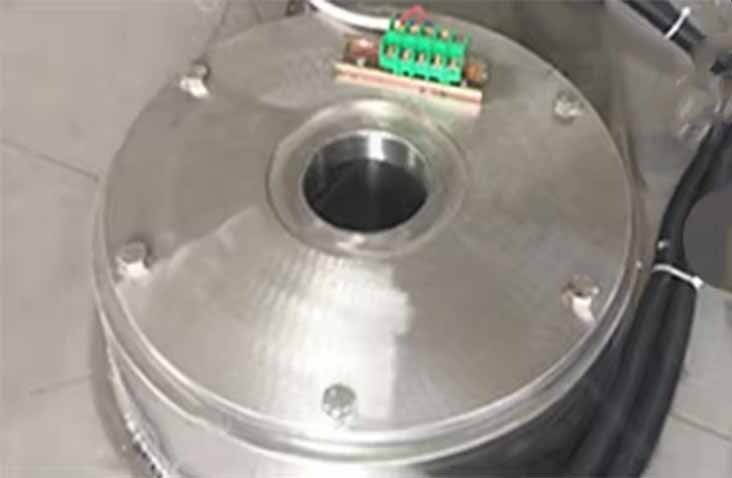

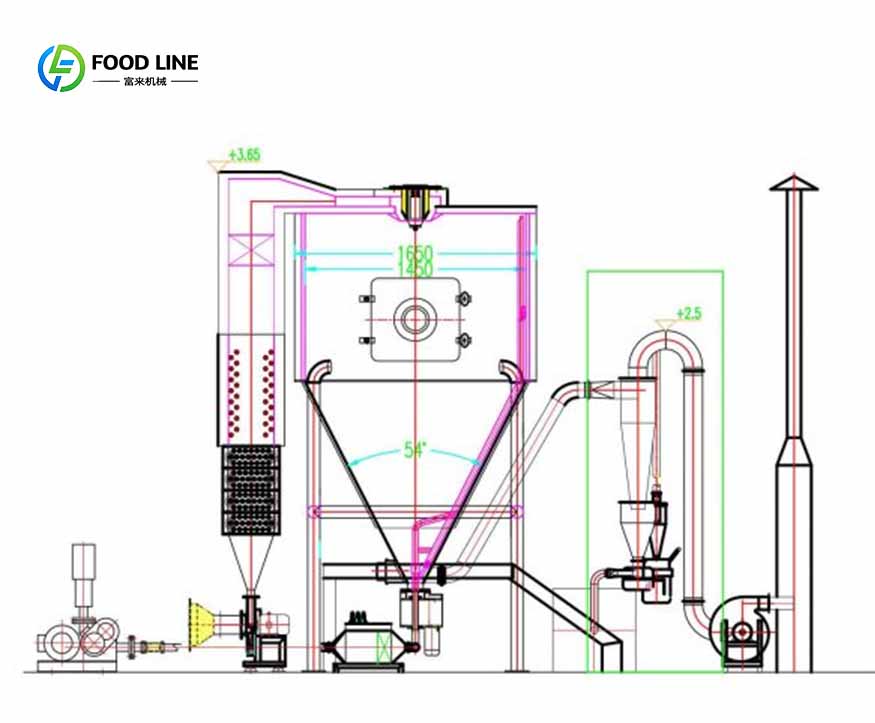

The atomization structure of centrifugal spray, the particle size of the spray powder is normally distributed, and the fluidity is good.

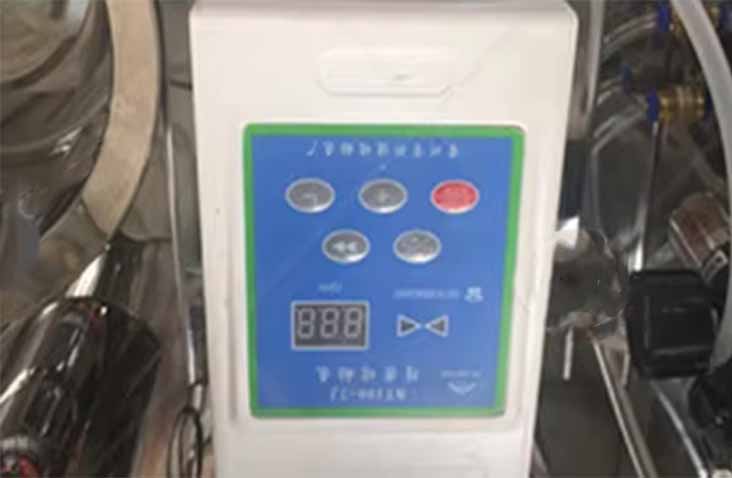

The amount of material input can be adjusted to the required range through the peristaltic pump. The minimum processing capacity is 50 ml.

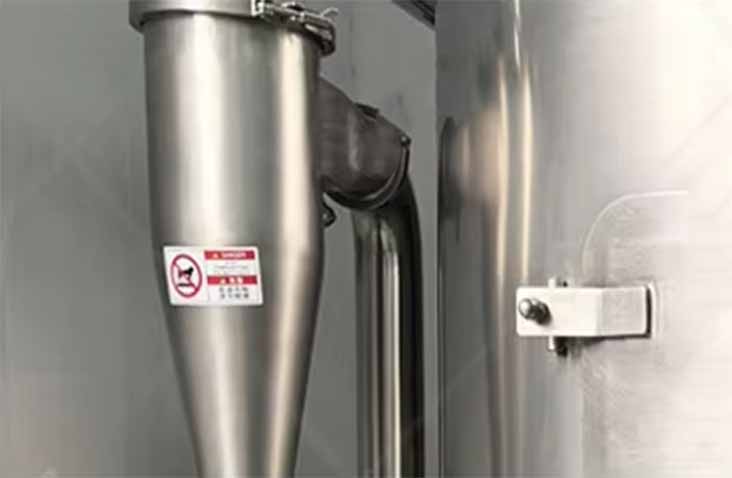

The dried water vapor is discharged from here, and the dried material passes through the separator to remove dust and water, and separate solid and liquid.

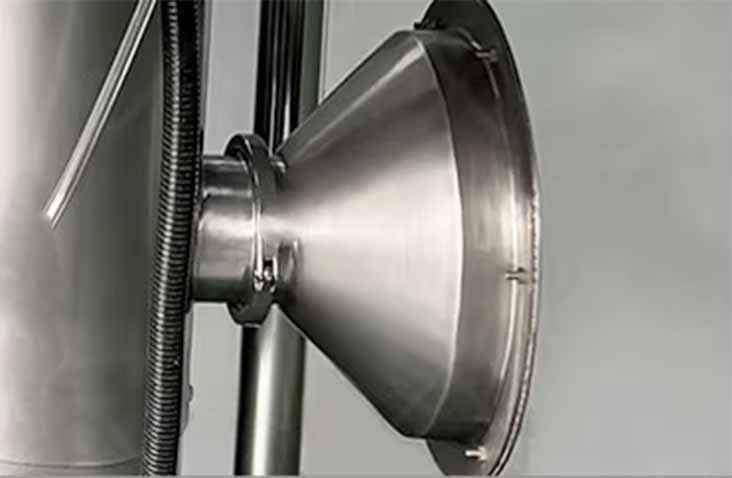

The filter filters the air to ensure the purity of the sample.
