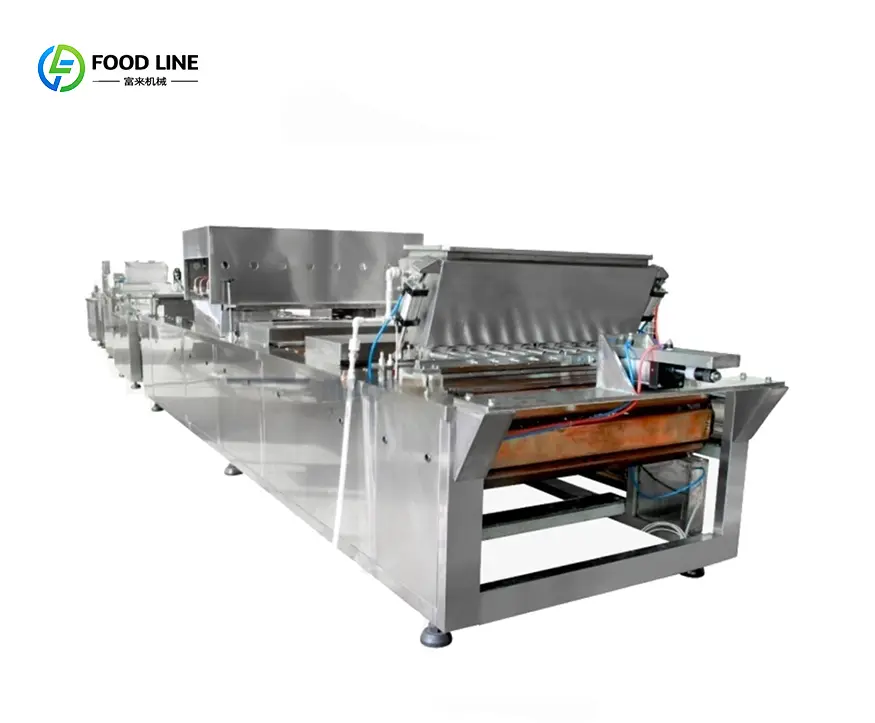

Our fully automatic dorayaki production line is designed for medium-to-large food factories, baking centers, and central kitchens. The line accurately reproduces traditional handmade dorayaki baking techniques. Through precise temperature control and stable automated operation, it enables continuous, large-scale production while ensuring golden appearance, soft texture, consistent taste, and stable product quality.
Capacity
Product Diameter

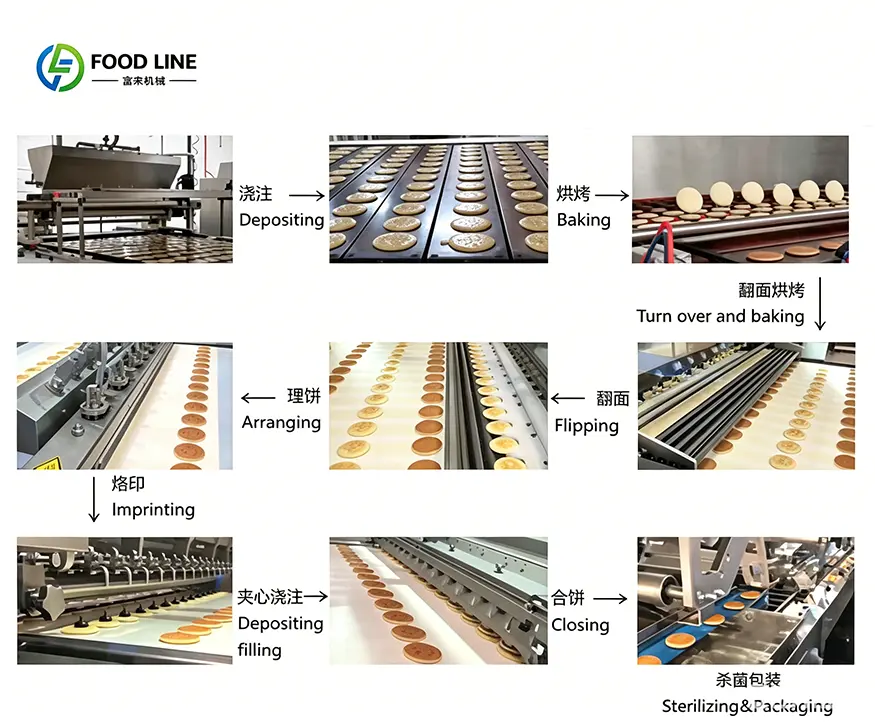

The complete process includes automatic batter depositing, copper plate baking, automatic flipping, high-precision filling injection, sandwiching and pressing, followed by cooling conveyor transport. All processes are seamlessly integrated to significantly improve production efficiency and reduce manual labor dependency.
process
Batter Mixer
Doyaraki Batter Depositor
Copper Baking Machine
Dorayaki Flipping Unit & Conveyor
Filling Injection & Sandwiching Machine
| Model | FL-400 | FL-600 | FL-1000 |
| Power | 66.19KW | 70KW | 100KW |
| Capacity | 1800 pieces/h | 2700 pieces/h | 4500 pieces/h |
| Discharge head | 4 | 6 | 6 |
| Baking sheet length | 4.5meter | 5meter | 5meter |
| Baking time | 90 seconds | 90 seconds | 90 seconds |

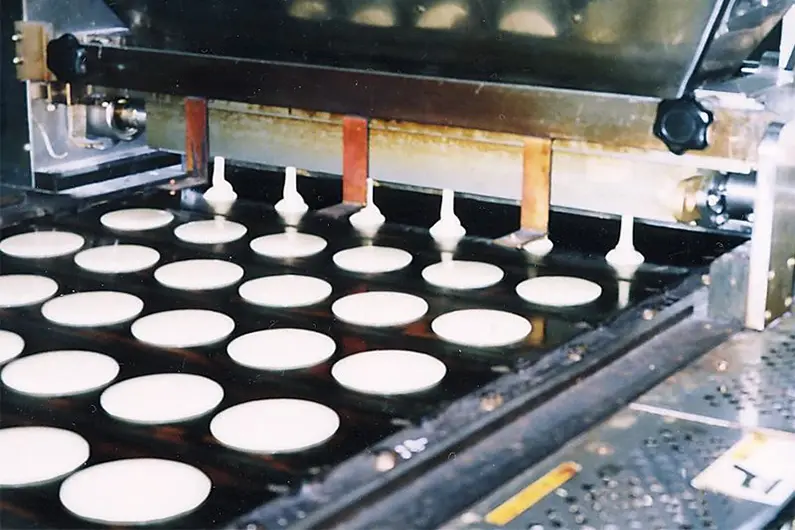

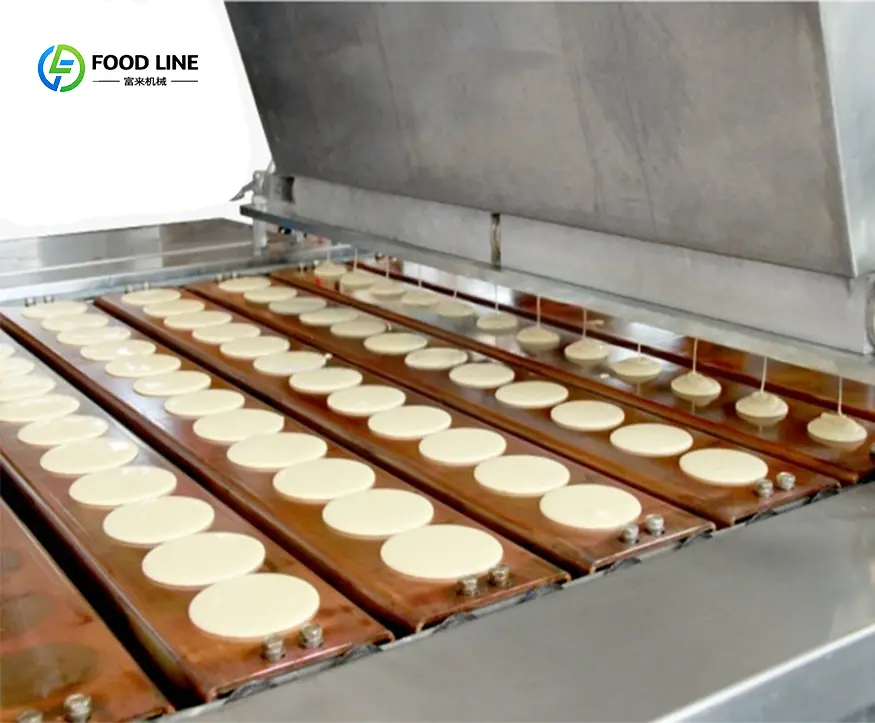

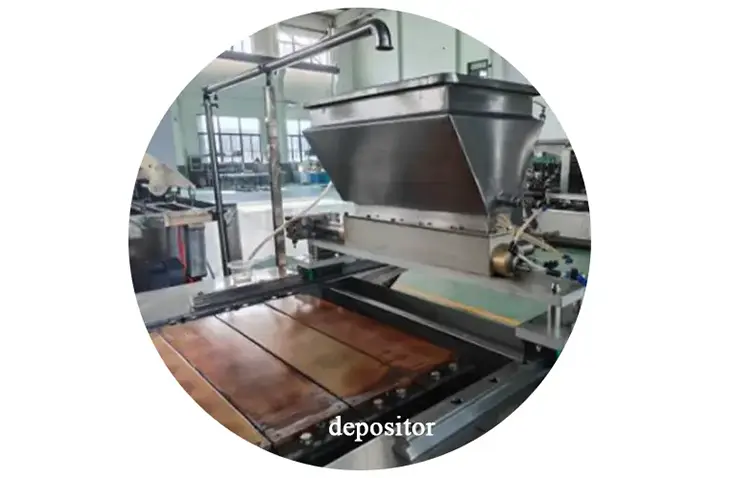

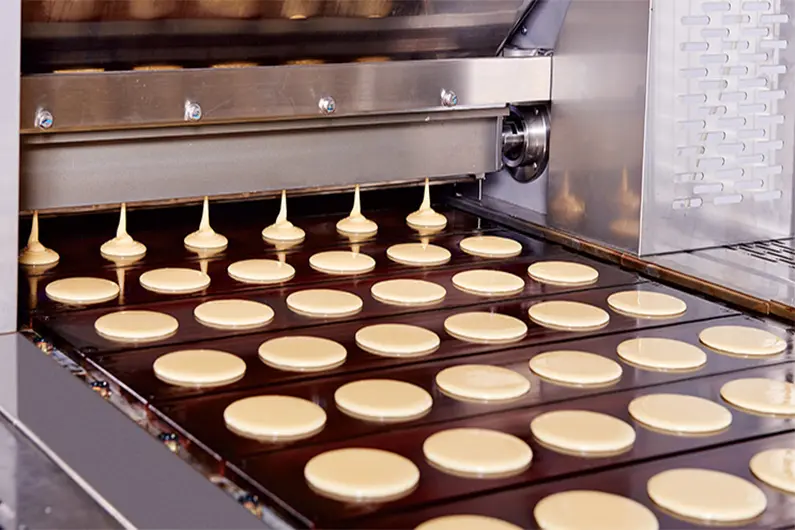

It is used to depositing the slurry into copper plate oven,it can calculate automatically, and use the cylinder inside to adjust the distance.

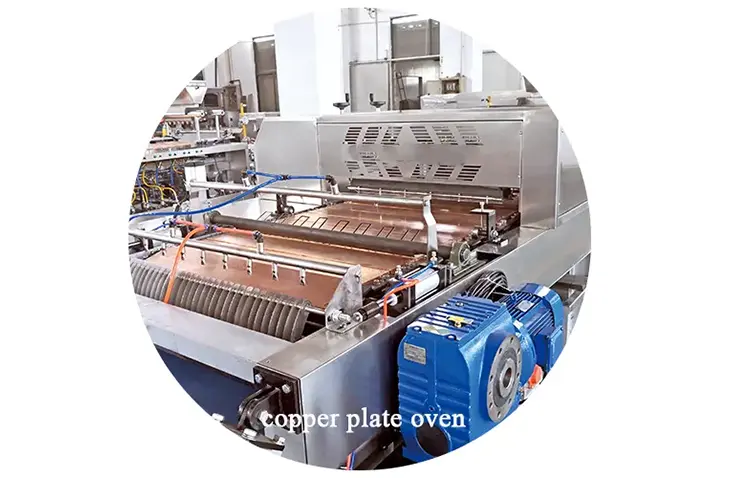

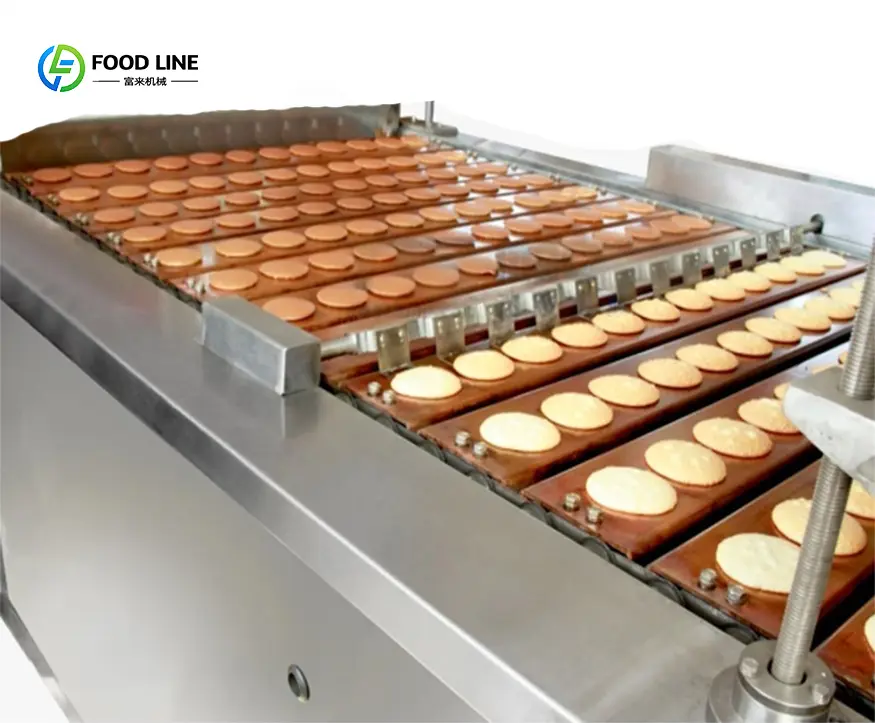

It's for baking the pancake,heat pipe heating (natural gas). Automatic temperature control, PLC control,touch screen adopts a cantilever swing type.

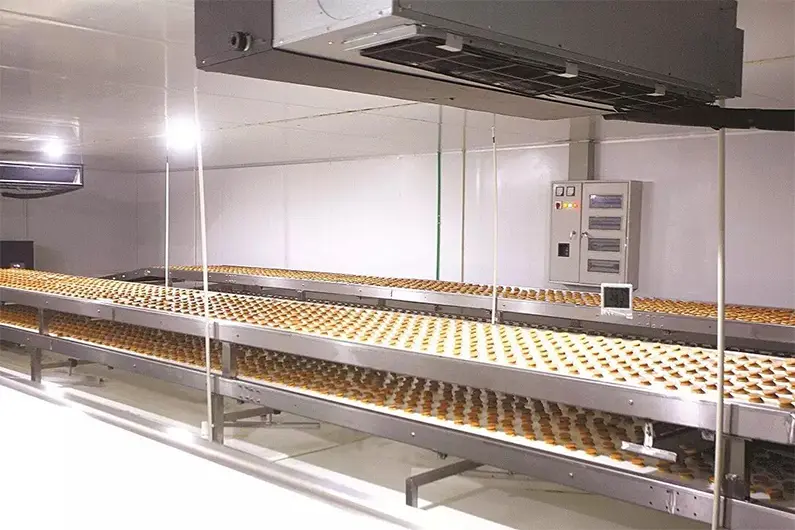

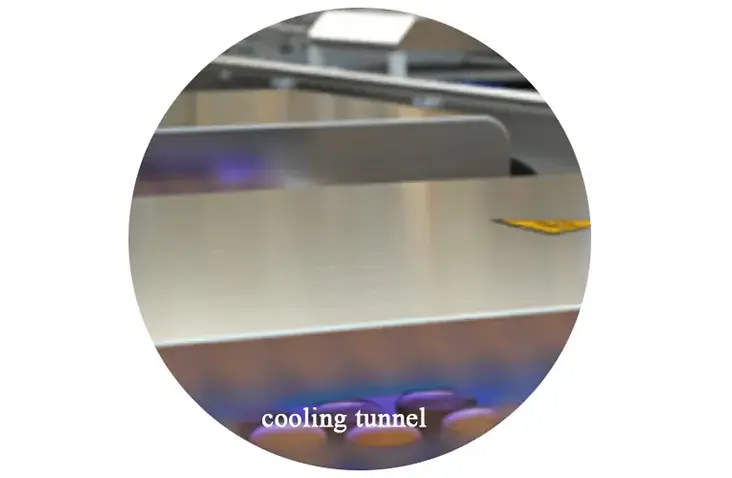

It’s for cooling the pancake,its frame is welded with stainless steel, temperature can be adjusted from 5 to 15 degrees.

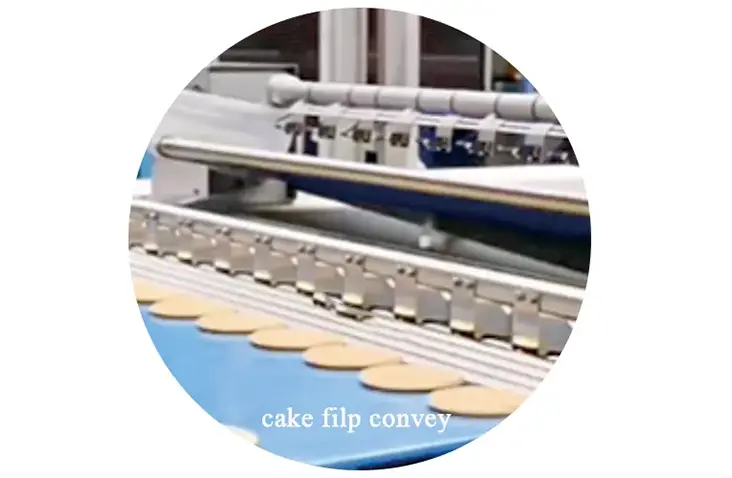

It’s for flip the cake & transfer into belt convey,Food grade stainless steel and equipped with an alcohol cleaning device.

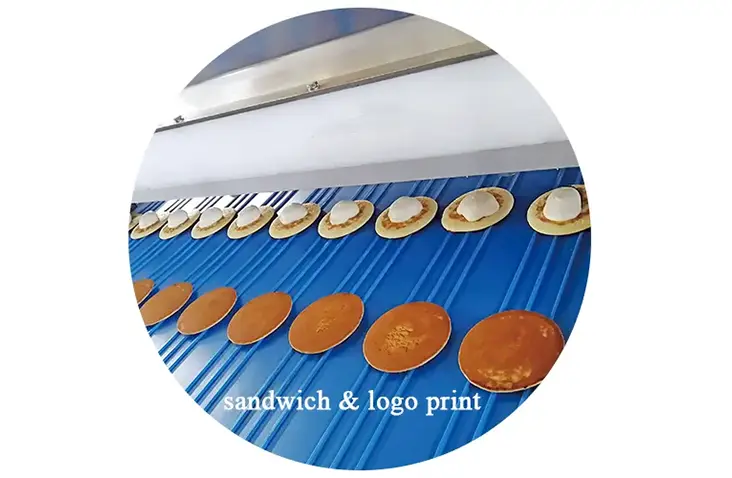

It is used to sandwich the cake with cream or chocolate & print the logo on the surface of the pancake,equipped with a branding device and features automatic temperature control.

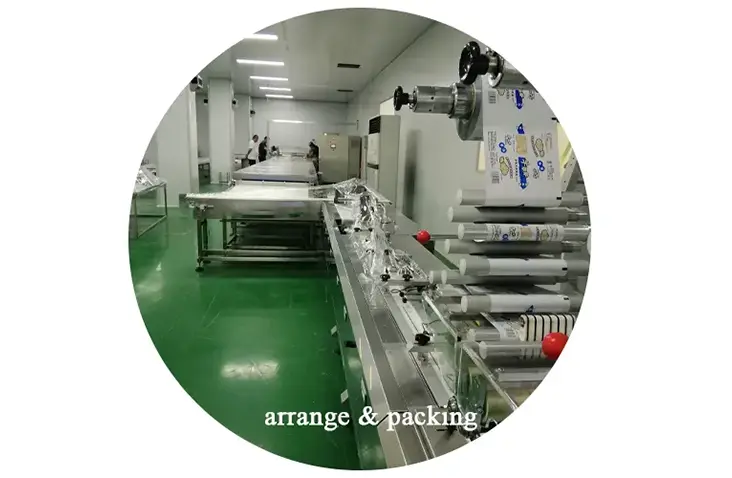

It’s for arrange the cupcake in good order & packing the cake into plastic bag,with Fully automatic control with high efficiency,Big capacity & stable performance.
